Question 7 of 180

Using a battery, a 100 pF capacitor is charged to 60 V and then the battery is removed. After that, a second uncharged capacitor is connected to the first capacitor in parallel. If the final voltage across the second capacitor is 20 V, its capacitance is : (in pF)

A$600$B$200$C$400$D$100$

Show answer and solution▾

Answer: (B) $200$

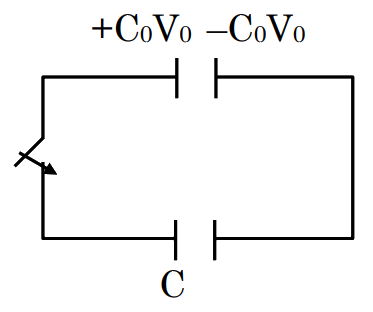

New potential $=\frac{\mathrm{C}_0 \mathrm{~V}_0}{\mathrm{C}_0+\mathrm{C}}=\frac{\mathrm{V}_0}{3}$
$\begin{aligned} & 3 \mathrm{C}_0 \mathrm{~V}_0=\mathrm{C}_0 \mathrm{~V}_0+\mathrm{CV}_0 \\ & 2 \mathrm{C}_0 \mathrm{~V}_0=\mathrm{CV}_0 \\ & \mathrm{C} \Rightarrow 2 \mathrm{C}_0\end{aligned}$
