Question 24 of 153

A bar magnet is passing through a conducting loop of radius $R$ with velocity $v.$ The radius of the bar magnet is such that it just passes through the loop. The induced e.m.f. in the loop can be represented by the approximate curve:

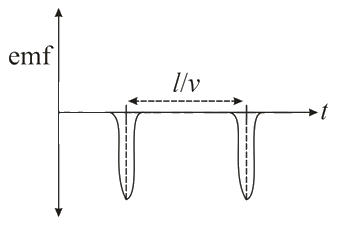

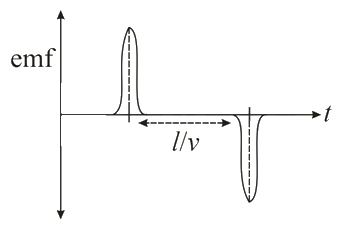

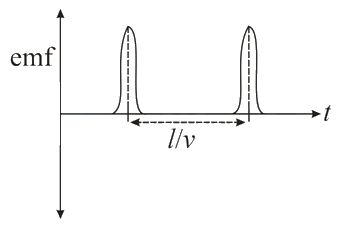

ABCD

Show answer and solution▾

Answer: (C)

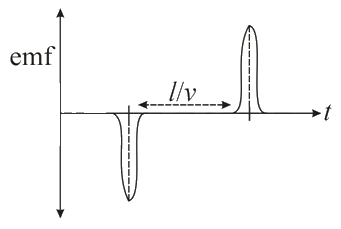

As Magnet is approaching toward the loop magnetic flux increases and Rate of increment of flux also increases so emf increases with time
at this moment emf is maximum and negative
Magnet is in middle of coil, at this moment emf is equal to zero
Now again flux start changing however polarity of emf get reverse
At this moment emf is again maximum
emf again become zero
