Question 34 of 192

A vessel with square cross-section and height of 6 m is vertically partitioned. A small window of $100 \mathrm{~cm}^2$ with hinged door is fitted at a depth of 3 m in the partition wall. One part of the vessel is filled completely with water and the other side is filled with the liquid having density $1.5 \times 10^3 \mathrm{~kg} / \mathrm{m}^3$. What force one needs to apply on the hinged door so that it does not get opened ?
(Acceleration due to gravity $=10 \mathrm{~m} / \mathrm{s}^2$)

Your answerCheck answer

Show answer and solution▾

Answer: 150

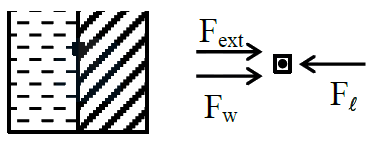

in equilibrium
$\begin{aligned} & \mathrm{F}_{\text {ext }}+\mathrm{F}_{\mathrm{w}}=\mathrm{F}_{\ell} \\ & \Rightarrow \mathrm{F}_{\text {ext }}=\mathrm{F}_{\ell}-\mathrm{F}_{\mathrm{w}} \\ & =\left(\mathrm{P}_0+\rho_{\ell} \mathrm{gh}\right) \mathrm{A}-\left(\mathrm{P}_0+\rho_{\mathrm{w}} \mathrm{gh}\right) \mathrm{A} \\ & =\left(\rho_{\ell}-\rho_{\mathrm{w}}\right) \mathrm{ghA} \\ & =(1500-1000) \times 10 \times 3 \times\left(100 \times 10^{-4}\right) \\ & =150 \mathrm{~m}\end{aligned}$
