Question 39 of 180

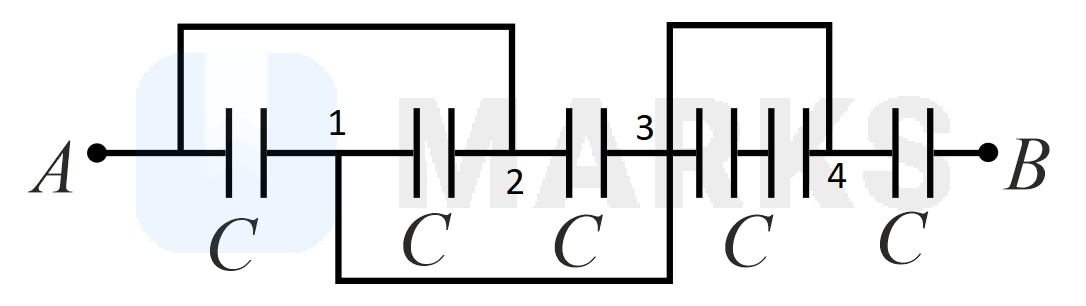

The equivalent capacitance between points $A$ and $B$ in below shown figure will be _____ $\mu F$.

Your answerCheck answer

Show answer and solution▾

Answer: 6

Point $3$ and $4$ are at same potential, hence we can replace the capacitor with a wire.

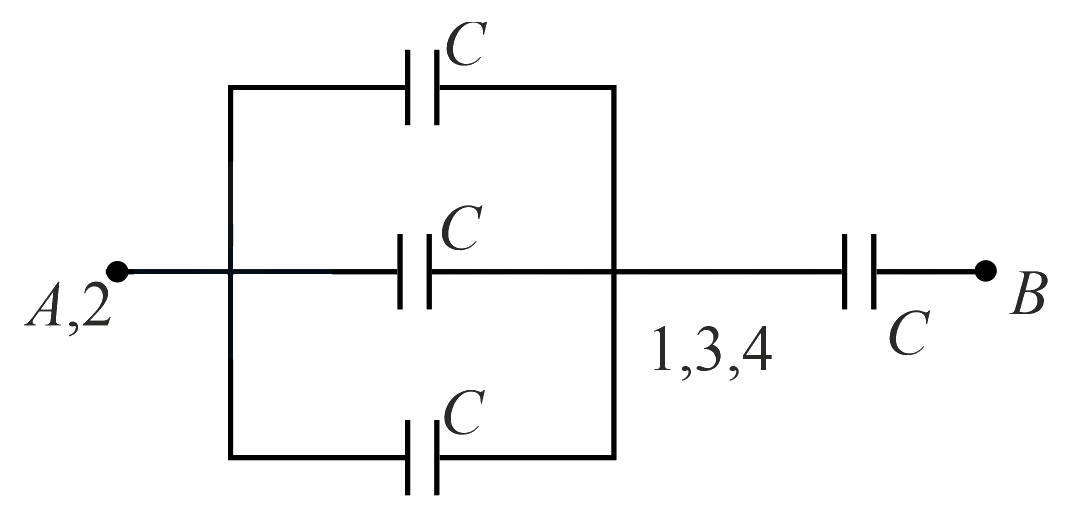

Capacitors between points $A$ and $3$ are in parallel combination as shown above and their combined capacitance value will be $3C$.
This $3C$ capacitance is in series with $C$.
The equivalent capacitance of the system between points A and B is,
${C}_{AB}=\dfrac{3C\times C}{3C+C}=\dfrac{3C}{4}$
$\Rightarrow {C}_{AB}=\dfrac{3}{4}\times 8\mu F=6\mu F$
