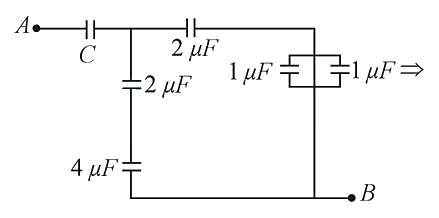

In the circuit shown, find if the effective capacitance of the whole circuit is to be All values in the circuit are in
Show answer and solution
Answer: (C)

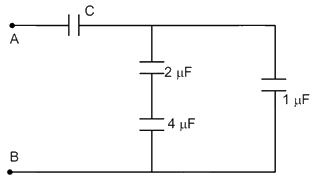

Let us take the equivalent circuit one by one.
= 0.5
= 0.5
Capacitors
JEE Main level, single correct, medium
In the circuit shown, find if the effective capacitance of the whole circuit is to be All values in the circuit are in
