Question 54 of 180

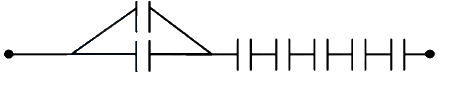

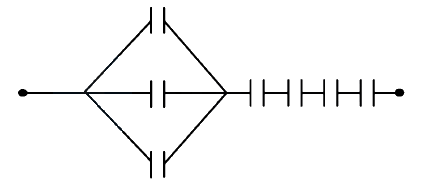

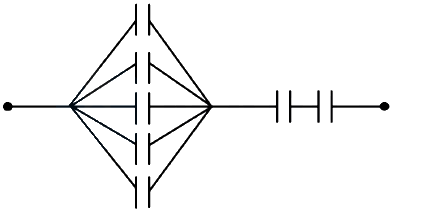

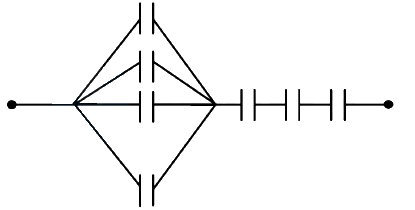

Seven capacitors, each of capacitance $2 \mu \mathrm{F},$ are to be connected in a configuration to obtain an effective capacitance of $\left(\frac{6}{13}\right) \mu \mathrm{F} .$ Which of the combinations, shown in figures below, will achieve the desired value?

ABCD

Show answer and solution▾

Answer: (B)

As required equivalent capacitance should be

$C_{\mathrm{eq}}=\frac{6}{13} \mu \mathrm{F}$

Therefore three capacitors must be in parallel and 4 must

be in series with it.

$\frac{1}{\mathrm{C}_{\mathrm{eq}}}=\left[\frac{1}{3 \mathrm{C}}\right]+\left[\frac{1}{\mathrm{C}}+\frac{1}{\mathrm{C}}+\frac{1}{\mathrm{C}}+\frac{1}{\mathrm{C}}\right]$

$C_{\mathrm{eq}}=\frac{3 \mathrm{C}}{13}=\frac{6}{13} \mu \mathrm{F} \quad[$ as $\mathrm{C}=2 \mu \mathrm{F}]$

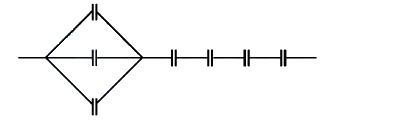

So, desired combination will be as below:
