Question 264 of 308

A body is projected at $t=0$ with a velocity $10 \mathrm{~ms}^{-1}$ at an angle of $60^{\circ}$ with the horizontal. The radius of curvature of its trajectory at $t=1$ s is $R$. Neglecting air resistance and taking acceleration due to gravity $\mathrm{g}=10 \mathrm{~ms}^{-2}$, the value of $R$ is:

A$10.3 \mathrm{~m}$B$2.8 \mathrm{~m}$C$2.5 \mathrm{~m}$D$5.1 \mathrm{~m}$

Show answer and solution▾

Answer: (B) $2.8 \mathrm{~m}$

Horizontal component of velocity $\mathrm{v}_{x}=10 \cos 60^{\circ}=5 \mathrm{~m} / \mathrm{s}$

vertical component of velocity $v_{y}=10 \cos 30^{\circ}=5 \sqrt{3} \mathrm{~m} / \mathrm{s}$

After $\mathrm{t}=1 \mathrm{sec}$

Horizontal component of velocity $\mathrm{v}_{x}=5 \mathrm{~m} / \mathrm{s}$ Vertical component of velocity $v_{y}=|(5 \sqrt{3}-10)| \mathrm{m} / \mathrm{s}=10-5 \sqrt{3}$

Centripetal, acceleration $\mathrm{a}_{\mathrm{n}}=\frac{\mathrm{v}^{2}}{\mathrm{R}}$

$\Rightarrow \mathrm{R}=\frac{\mathrm{v}_{\mathrm{x}}^{2}+\mathrm{v}_{\mathrm{y}}^{2}}{\mathrm{a}_{\mathrm{n}}}=\frac{25+100+75-100 \sqrt{3}}{10 \cos \theta}$

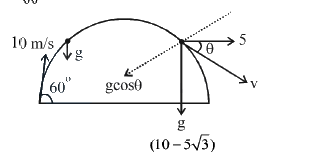

From figure (using (i)) $\tan \theta=\frac{10-5 \sqrt{3}}{5}=2-\sqrt{3} \Rightarrow \theta=15^{\circ}$

$\mathrm{R}=\frac{100(2-\sqrt{3})}{10 \cos 15}=2.8 \mathrm{~m}$
