Question 205 of 295

The refractive index of the material of a concave lens is $\mu$. It is immersed in a medium of refractive index $\mu_1$. A parallel beam of light is incident on the lens. The path of the emergent rays when $\mu_1\gt \mu$ is:

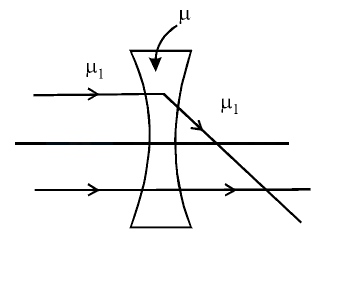

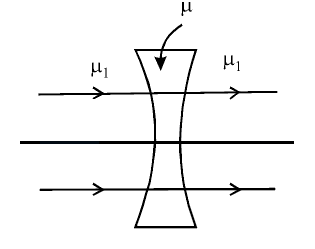

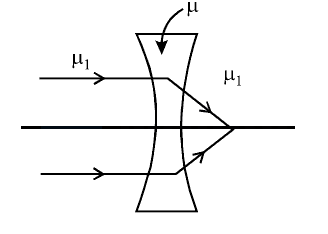

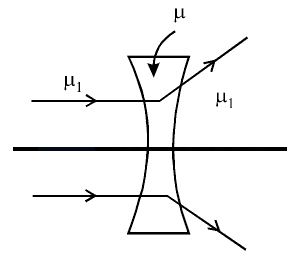

ABCD

Show answer and solution▾

Answer: (A)

If a lens of refractive index $\mu$ is immersed in a medium of refractive index $\mu_1$, then its focal length in medium is given by
$$\frac{1}{\mathrm{f}_{\mathrm{m}}}=\left({ }_{\mathrm{m}} \mu_l-1\left(\frac{1}{\mathrm{R}_1}\right)-\frac{1}{\mathrm{R}_2}\right)$$
If $\mathrm{f}_{\mathrm{a}}$ is the focal length of lens in air, then
$$\begin{aligned} &\frac{1}{\mathrm{f}_{\mathrm{a}}}=\left({ }_{\mathrm{a}} \mu_l-1\left(\frac{1}{\mathrm{R}_1}-\frac{1}{\mathrm{R}_2}\right)\right. \\ &\Rightarrow \frac{\mathrm{f}_{\mathrm{m}}}{\mathrm{f}_{\mathrm{a}}}=\frac{\left({ }_{\mathrm{a}} \mu_l-1\right)}{\left({ }_{\mathrm{m}} \mu_l-1\right)} \end{aligned}$$
If $\mu_1\gt \mu$, then $\mathrm{f}_{\mathrm{m}}$ and $\mathrm{f}_{\mathrm{a}}$ have opposite signs and the nature of lens changes i.e. a convex lens diverges the light rays and concave lens converges the light rays. Thus given option (a) is correct.
