Thermodynamics

JEE Main level, single correct, medium

168 of 190

Question 168 of 190

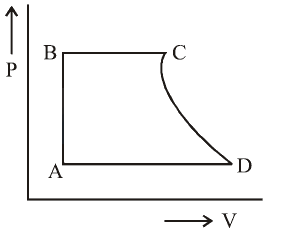

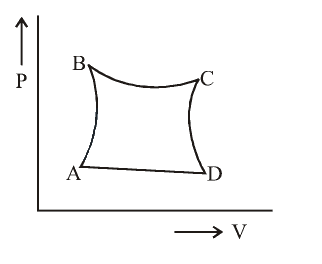

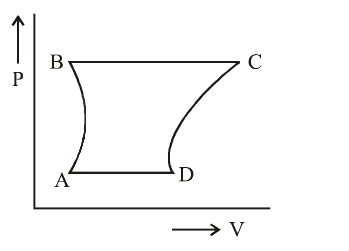

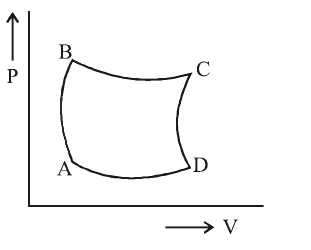

A certain amount of gas is taken through a cyclic process (A B C D A) that has two isobars, one isochore and one isothermal. The cycle can be represented on a P−V\mathrm{P}-\mathrm{V} indicator diagram as :

Show answer and solution

Answer: (C)

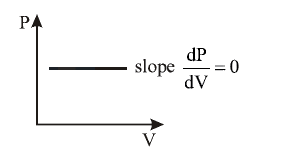

P-V indicator diagram for isobaric


P−V\mathrm{P}-\mathrm{V} indicator diagram for isochoric process

P−V\mathrm{P}-\mathrm{V} indicator diagram for isothermal process
