Question 75 of 210

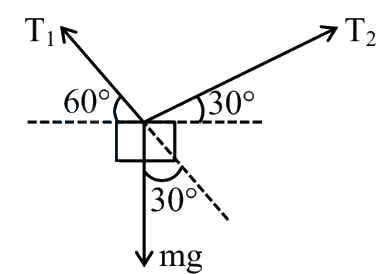

A body of mass 1 kg is suspended with the help of two strings making angles as shown in figure. Magnitude of tensions $T_1$ and $T_2$, respectively, are (in N) :

A$5,5 \sqrt{3}$B$5 \sqrt{3}, 5$C$5 \sqrt{3}, 5 \sqrt{3}$D5,5

Show answer and solution▾

Answer: (B) $5 \sqrt{3}, 5$

$\begin{aligned} & \mathrm{T}_1=\mathrm{mg} \cos 30^{\circ} \\ & \mathrm{T}_2=\mathrm{mg} \sin 30^{\circ}\end{aligned}$
