Semiconductors

NEET level, single correct, medium

2 of 209

Question 2 of 209

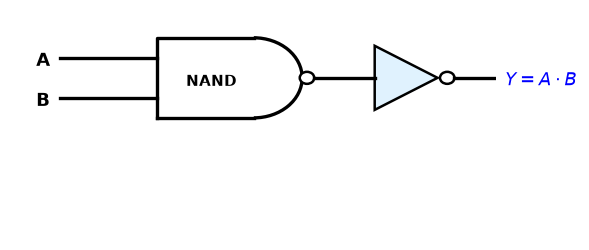

In the given digital logic circuit network consisting of a NAND gate followed by a NOT gate, if inputs are $A=1$ and $B=1$ , the final output $Y$ will be:

Diagram for this Semiconductors question

Show answer and solution

Answer: (D) 1

NAND output

= \overline{1 \cdot 1} = 0

. NOT gate inverts

0

into

Y = 1

. The combination acts as an AND gate.
