Question 47 of 380

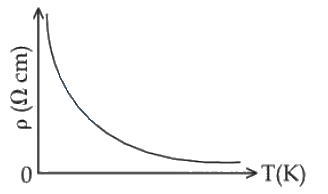

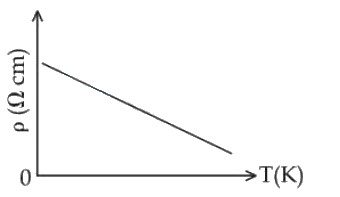

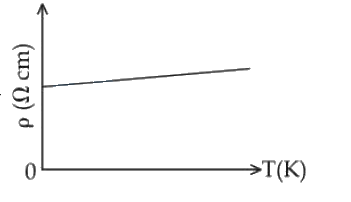

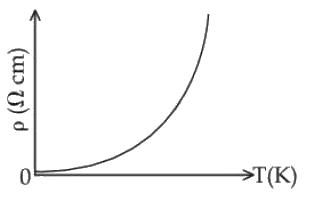

Which of the following resistivity ( ) temperature (T) curves is most suitable to be used in wire bound standard resistors?
Show answer and solution
Answer: (D)
Resistivity is independent of temperature for wire bound resistors
Current Electricity
JEE Main level, single correct, medium
