Question 72 of 380

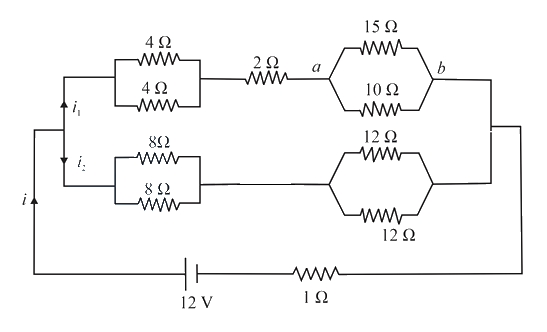

The voltage drop across resistance in the given figure will be _______
Show answer and solution
Answer: 6

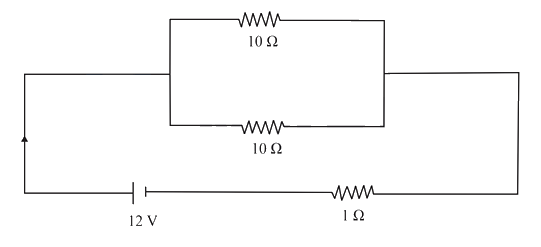

equivalent circuit
Current Electricity
JEE Main level, numerical answer, medium
The voltage drop across resistance in the given figure will be _______
equivalent circuit
