The current I flowing through the given circuit will be _____ $A$.

Your answerCheck answer

Show answer and solution▾

Answer: 2

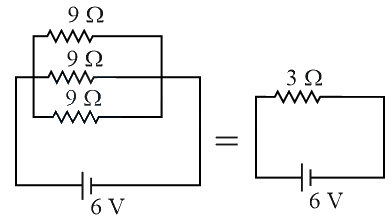

Here all resistors are in parallel, so the equivalent circuit can be redrawn as shown below.

As identical resistances are in parallel, so equivalent resistance is $R=\dfrac{9}{3}=3\Omega$
Now, current through circuit is $I=\dfrac{6}{3}=2A$
