Question 140 of 380

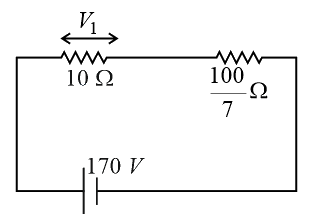

The voltage across the 10Ω10\Omega resistor in the given circuit is xx volt.

The value of xx to the nearest integer is _____.

Show answer and solution

Answer: 70

Req1=50×2070=1007{R}_{e{q}_{1}}=\dfrac{50\times 20}{70}=\dfrac{100}{7}

Req=1707{R}_{eq}=\dfrac{170}{7}
v1=[1701707]×10=70V{v}_{1}=\left[\dfrac{\dfrac{170}{170}}{7}\right]\times 10=70V
=70.00=70.00
