Question 145 of 380

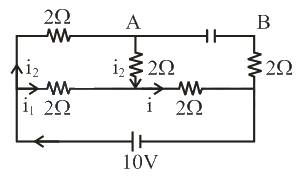

An ideal cell of emf $10V$ is connected in circuit shown in figure. Each resistance is $2\Omega$. The potential difference (in $V$) across the capacitor when it is fully charged is _____________

Your answerCheck answer

Show answer and solution▾

Answer: 8

$i=\dfrac{10}{\dfrac{4}{3}+2}=\dfrac{10\times 3}{10}=3Amp$
{i}_{1}=2A&{i}_{2}=1A
${V}_{AB}=1\times 2+3\times 2=8V$
