Question 156 of 380

In the given circuit all resistance is of the value of $R$ ohm each. The equivalent resistance between $A$ and $B$ is:

A$\dfrac{5R}{2}$B3RC$\dfrac{5R}{3}$D$2R$

Show answer and solution▾

Answer: (D) $2R$

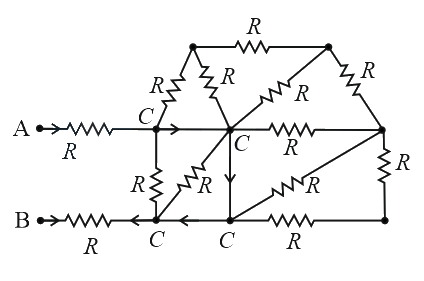

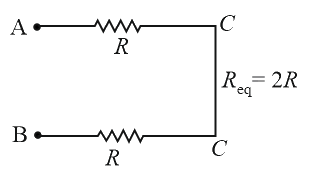

Resistance of ideal wire would be zero, and hence potential will be the same of all $C$ point as shown in the figure. So effective path of current is shown in figure,
