Current Electricity

JEE Main level, single correct, medium

159 of 380

Question 159 of 380

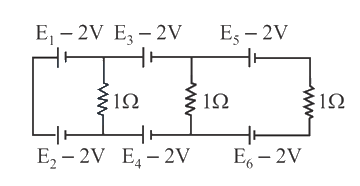

In the above circuit the current in each resistance is:

Show answer and solution

Answer: (A) 0A0A

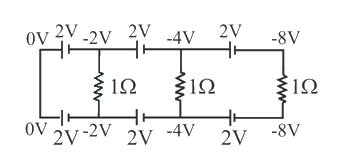

Potential difference across each resistor is zero. Hence current is zero in each resistor.

E1−E2=0,E3−E4=0,E4−E5=0{E}_{1}-{E}_{2}=0,{E}_{3}-{E}_{4}=0,{E}_{4}-{E}_{5}=0
Hence, current through all the 1Ω1\Omega ressitor is zero.
