Two identical cells, when connected either in parallel or in series gives same current in an external resistance $5\Omega$. The internal resistance of each cell will be ______ $\Omega$.

Your answerCheck answer

Show answer and solution▾

Answer: 5

Let $r$ be the internal resistance of each cell.

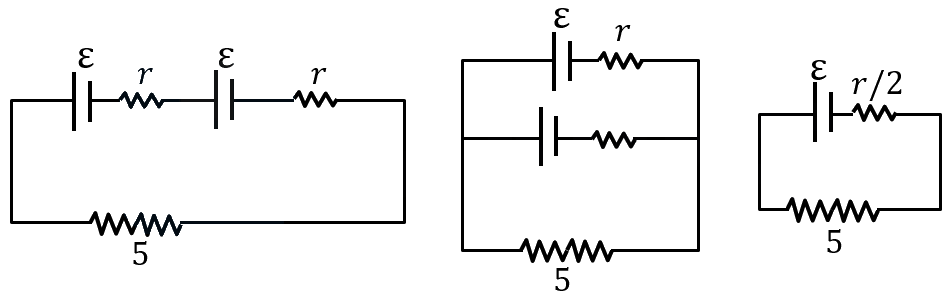

In above shown figure, first represents the series connection of cells. Second and third figures represents the parallel connection of cells.
Now, in case of series connection, ${\epsilon }_{net}=2\epsilon and{r}_{net}=2r$. So, current $i=\dfrac{2\epsilon }{5+2r}$ .....(1)
In case of parallel connection, ${\epsilon }_{net}=\dfrac{\epsilon r+\epsilon r}{r+r}=\epsilon and{r}_{net}=\dfrac{r}{2}$. So, current $i=\dfrac{\epsilon }{\dfrac{r}{2}+5}$ .....(2)
Equating (1) and (2), we get
$\dfrac{2\epsilon }{5+2r}=\dfrac{\epsilon }{\dfrac{r}{2}+5}$
$\Rightarrow r+10=5+2r$
$\Rightarrow r=5\Omega$.
