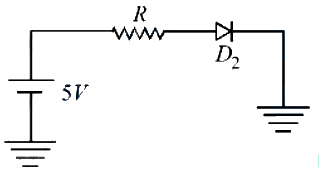

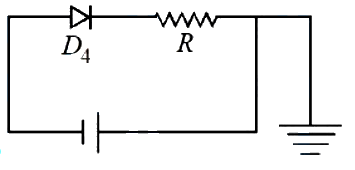

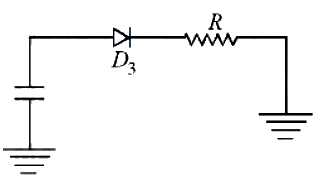

Which of the diode circuit shows correct biasing used for the measurement of dynamic resistance of p-n junction diode :
Show answer and solution
Answer: (C)
Diode should be in forward biased to calculate dynamic resistance.
