Semiconductors

JEE Main level, single correct, medium

74 of 209

Question 74 of 209

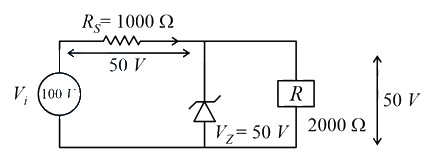

For the circuit shown below, calculate the value of ${I}_{z}:$

Show answer and solution

Answer: (A) $25mA$

I=\dfrac{50}{1000}=50mA

I=\dfrac{50}{2000}=25mA

{I}_{Z}={I}_{1000}-{I}_{2000}

=50-25=25mA
