Question 76 of 209

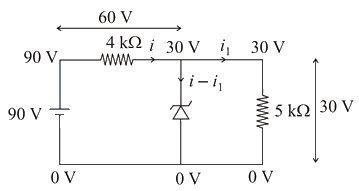

The zener diode has a . The current passing through the diode for the following circuit is___
Show answer and solution
Answer: 9
current from zener diode
Semiconductors
JEE Main level, numerical answer, medium
The zener diode has a . The current passing through the diode for the following circuit is___
current from zener diode
