Question 152 of 209

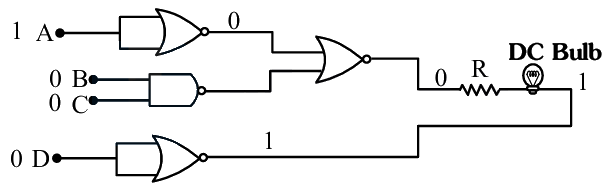

Following gates section is connected in a complete suitable circuit.

$\text { For which of the following combination, bulb will glow (ON) : }$

A$\mathrm{A}=0, \mathrm{~B}=0, \mathrm{C}=0, \mathrm{D}=1$B$\mathrm{A}=0, \mathrm{~B}=1, \mathrm{C}=1, \mathrm{D}=1$C$\mathrm{A}=1, \mathrm{~B}=0, \mathrm{C}=0, \mathrm{D}=0$D$\mathrm{A}=1, \mathrm{~B}=1, \mathrm{C}=1, \mathrm{D}=0$

Show answer and solution▾

Answer: (C) $\mathrm{A}=1, \mathrm{~B}=0, \mathrm{C}=0, \mathrm{D}=0$

Bulb will glow if bulb have potential drop on it. One end of bulb must be at high (1) and other must be at low (0).
Option (3) satisfy this condition
