Question 184 of 209

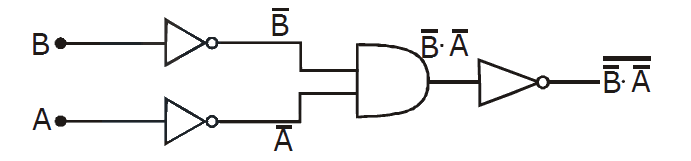

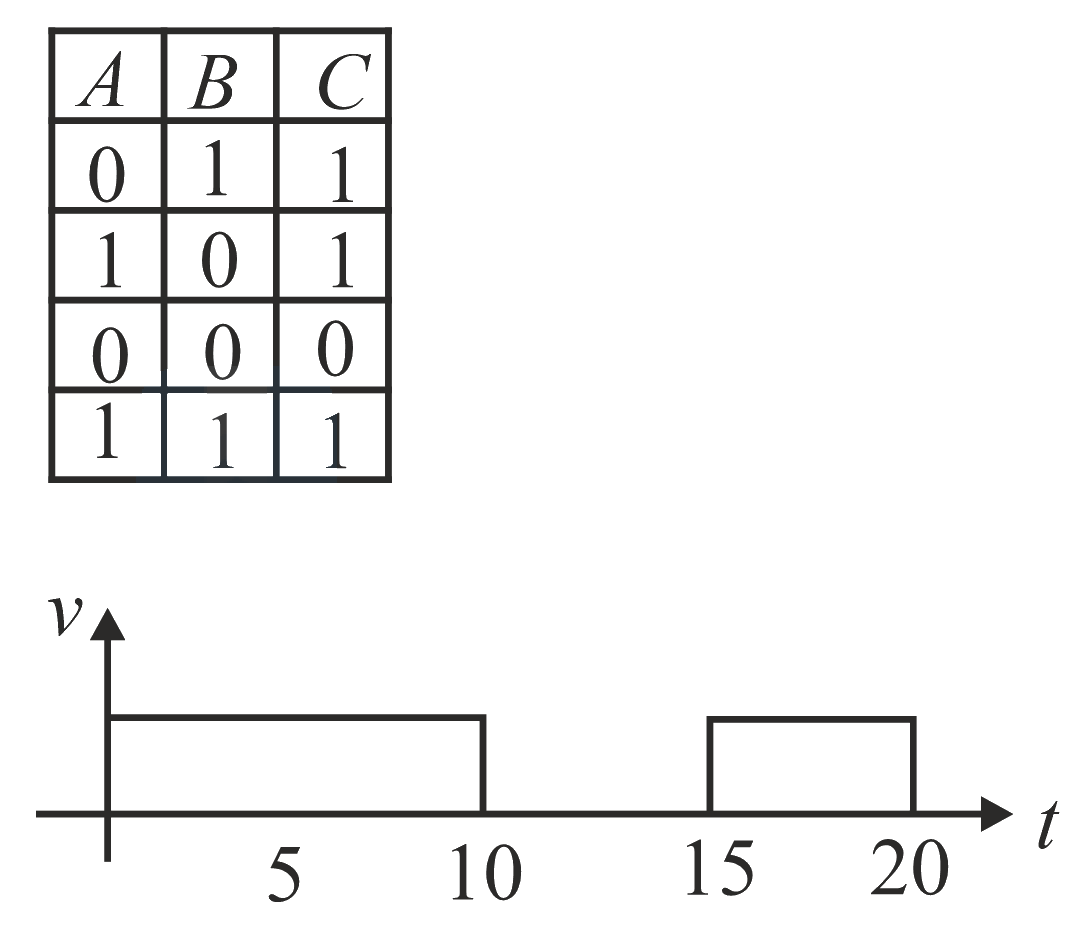

Identify the correct output signal in the given combination of gates (as shown ) for the given inputs
Show answer and solution
Answer: (D)
Truth table
Semiconductors
JEE Main level, single correct, medium
Identify the correct output signal in the given combination of gates (as shown ) for the given inputs
JEE Main question paper PDF
Open a shift to read the full paper on this page, or download it.
Opening paper…

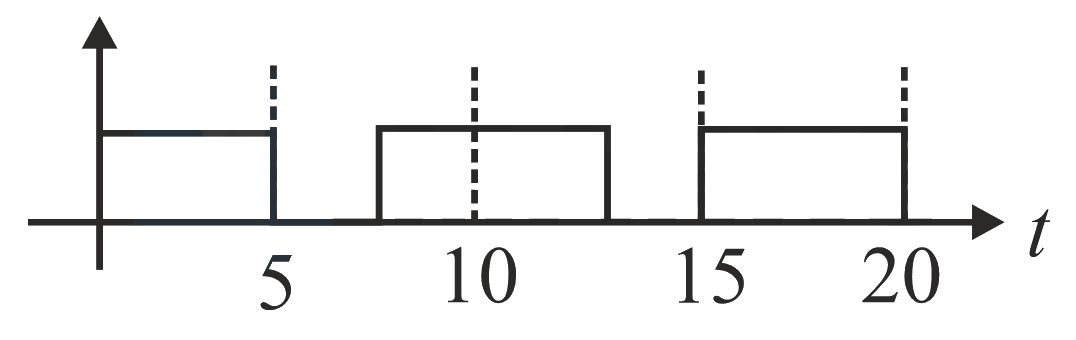

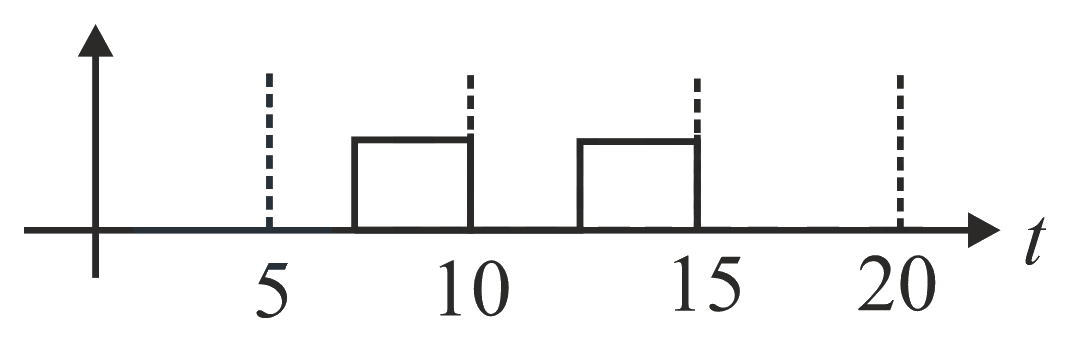

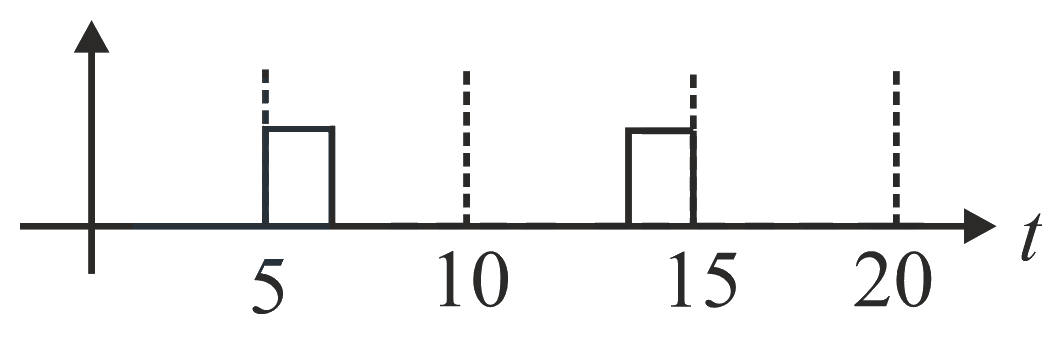

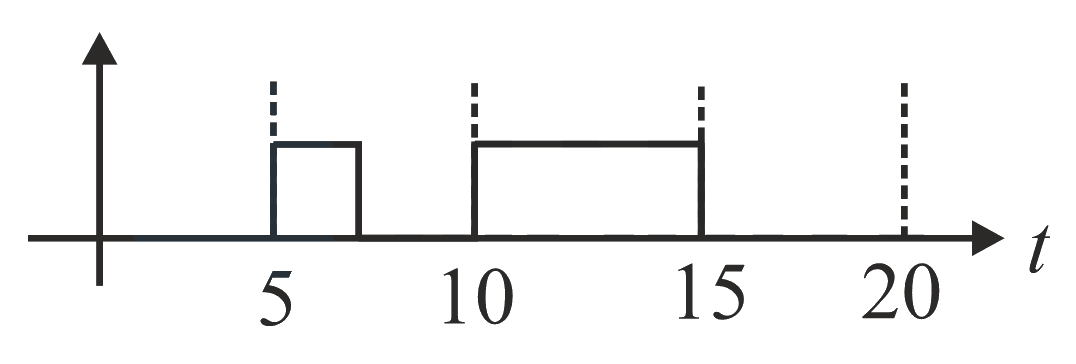

%20for%20the%20given%20inputs%20AandB%20%3Cimg%20src%3D%22%2Fpractice%2Fpyq%2Fsemiconductors1803382.png%22%3E%20%3Cimg%20src%3D%22%2Fpractice%2Fpyq%2Fsemiconductors1803383.png%22%3E%0A(A)%20%3Cimg%20src%3D%22%2Fpractice%2Fpyq%2Fsemiconductors180o03386.png%22%3E%0A(B)%20%3Cimg%20src%3D%22%2Fpractice%2Fpyq%2Fsemiconductors180o13387.png%22%3E%0A(C)%20%3Cimg%20src%3D%22%2Fpractice%2Fpyq%2Fsemiconductors180o23388.png%22%3E%0A(D)%20%3Cimg%20src%3D%22%2Fpractice%2Fpyq%2Fsemiconductors180o33389.png%22%3E){kind=link}
