Question 203 of 209
The figure shows a combination of two NOT gates and a NOR gate.
The combination is equivalent to
Show answer and solution
Answer: (C) AND gate

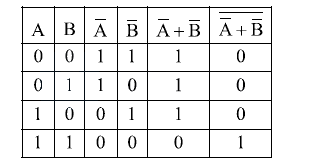

Truth table is as shown :
Thus the combination of two NOT gates and one NOR gate is equivalent to a AND gate.
Thus the combination of two NOT gates and one NOR gate is equivalent to a AND gate.
