Which logic gate with inputs and performs the same operation as that performed by the following circuit?
Show answer and solution
Answer: (B) OR gate
When either of or is 1 i.e. closed then lamp will glow.
In this case, Truth table

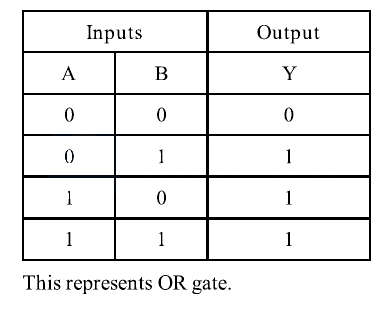

In this case, Truth table
