Semiconductors

JEE Main level, single correct, medium

208 of 209

Question 208 of 209

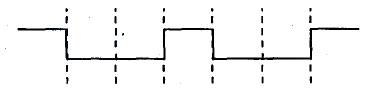

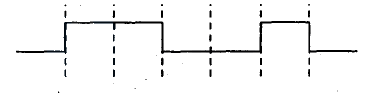

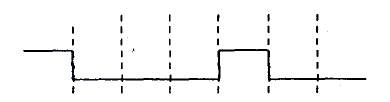

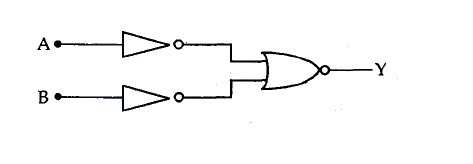

The logic circuit shown below has the input waveforms 'A' and 'B' as shown. Pick out the correct output waveform.

Show answer and solution

Answer: (A)

Truth Table
\begin{array}{|l|l|l|}
\hlineA & B & Y \\
\hline 1 & 1 & 1 \\
\hline 1 & 0 & 0 \\
\hline 0 & 1 & 0 \\
\hline 0 & 0 & 0 \\
\hline
\end{array}
