Question 100 of 380
Find the equivalent resistance between two ends of the following circuit
Show answer and solution
Answer: (A)

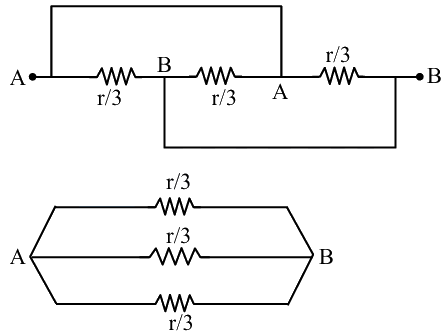

All are in parallel
Current Electricity
JEE Main level, single correct, medium
Find the equivalent resistance between two ends of the following circuit
All are in parallel
