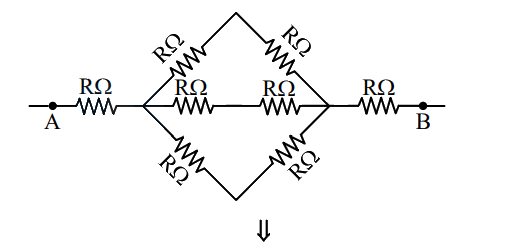

The effective resistance between and , if resistance of each resistor is , will be
Show answer and solution
Answer: (A)
From symmetry we can remove two middle resistance.

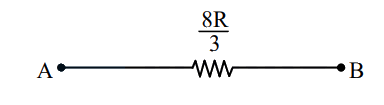

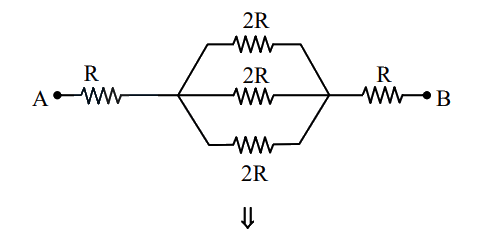

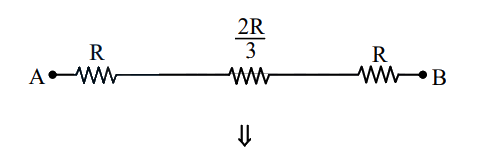

New circuit is
New circuit is
Current Electricity
JEE Main level, single correct, medium
The effective resistance between and , if resistance of each resistor is , will be
