Question 10 of 194

A particle is subjected two simple harmonic motions as :
$\mathrm{x}_1=\sqrt{7} \sin 5 \mathrm{tcm}$
and $x_2=2 \sqrt{7} \sin \left(5 t+\frac{\pi}{3}\right) \mathrm{cm}$
where x is displacement and $t$ is time in seconds. The maximum acceleration of the particle is $\mathrm{x} \times 10^{-2} \mathrm{~ms}^{-2}$. The value of x is :

A$175$B$25 \sqrt{7}$C$5 \sqrt{7}$D$125$

Show answer and solution▾

Answer: (A) $175$

$\begin{aligned} & \mathrm{x}_1=\sqrt{7} \sin 5 \mathrm{t} \\ & \mathrm{x}_2=2 \sqrt{7} \sin \left(5 \mathrm{t}+\frac{\pi}{3}\right)\end{aligned}$

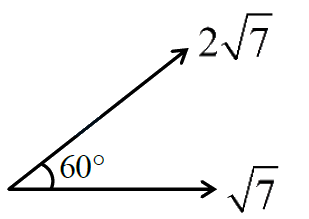

From phasor,

$\therefore$ Amplitude of resultant $\mathrm{SHM}=7$
$\begin{aligned} & \phi=\tan ^{-1} \frac{2 \sqrt{7} \times \sqrt{3} / 2}{\sqrt{7}+2 \sqrt{7} \times \frac{1}{2}}=\tan ^{-1} \frac{\sqrt{21}}{2 \sqrt{7}}=\tan ^{-1} \frac{\sqrt{3}}{2} \\ & \therefore \quad \mathrm{X}_{\mathrm{R}}=7 \sin (5 \mathrm{t}+\phi) \\ & \quad \mathrm{a}_{\mathrm{R}}=-7 \times 25 \sin (5 \mathrm{t}+\phi) \\ & \therefore \mathrm{a}_{\max }=175 \mathrm{~cm} / \mathrm{sec}=175 \times 10^{-2} \mathrm{~m} / \mathrm{sec}\end{aligned}$
