Semiconductors

JEE Main level, single correct, medium

39 of 209

Question 39 of 209

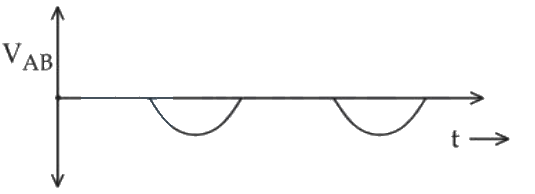

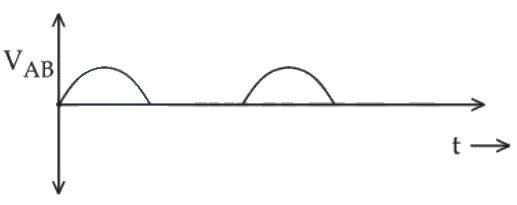

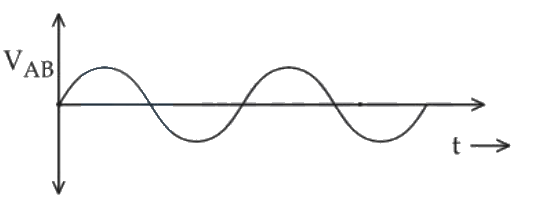

In the circuit shown here, assuming threshold voltage of diode is negligibly small, then voltage VABV_{A B} is correctly represented by :

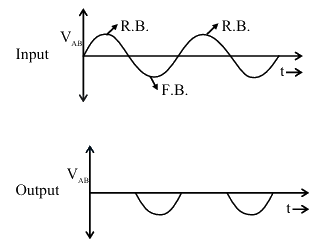

Show answer and solution

Answer: (D)

V=V0sin⁡ωt\mathrm{V}=\mathrm{V}_0 \sin \omega \mathrm{t}
