Question 40 of 209

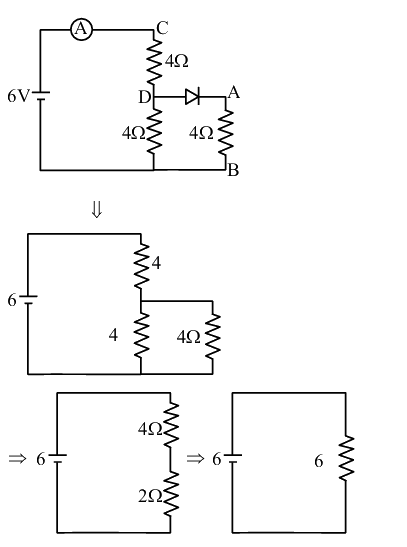

Refer to the circuit diagram given in the figure. which of the following observations are correct?
A. Total resistance of circuit is $6 \Omega$
B. Current in Ammeter is 1 A
C. Potential across $A B$ is 4 Volts.
D. Potential across CD is 4 Volts
E. Total resistance of the circuit is $8 \Omega$.

Choose the correct answer from the options given below:

AA, B and D OnlyBA, B and C OnlyCA, C and D OnlyDB, C and E Only

Show answer and solution▾

Answer: (A) A, B and D Only

Current through ammeter $=1 \mathrm{~A}$
$\mathrm{R}_{\mathrm{net}}=6 \Omega$

$\begin{aligned}
& \mathrm{V}_{\mathrm{AB}}=0.5 \times 4=2 \mathrm{volt} \\
& \mathrm{~V}_{\mathrm{CD}}=1 \times 4=4 \mathrm{volt}
\end{aligned}$

A, B & D are correct
