Semiconductors

JEE Main level, single correct, medium

67 of 209

Question 67 of 209

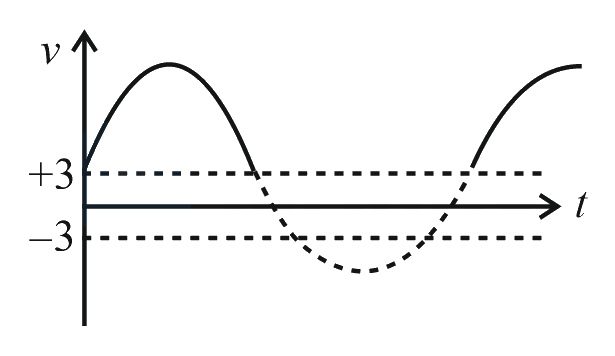

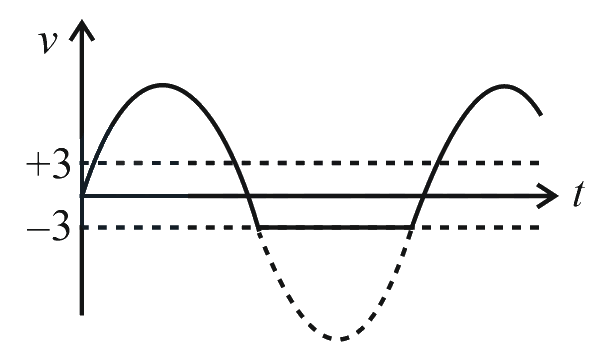

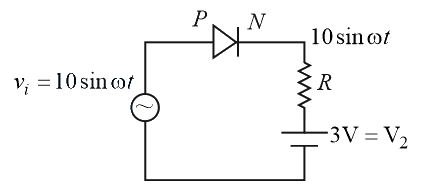

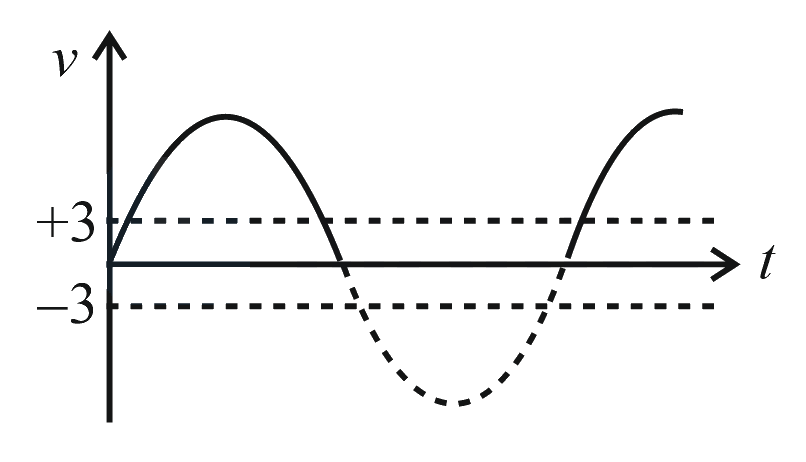

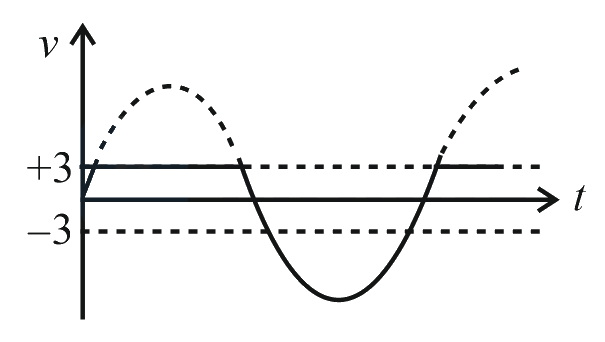

Choose the correct waveform that can represent the voltage across RR of the following circuit, assuming the diode is ideal one:

Show answer and solution

Answer: (A)

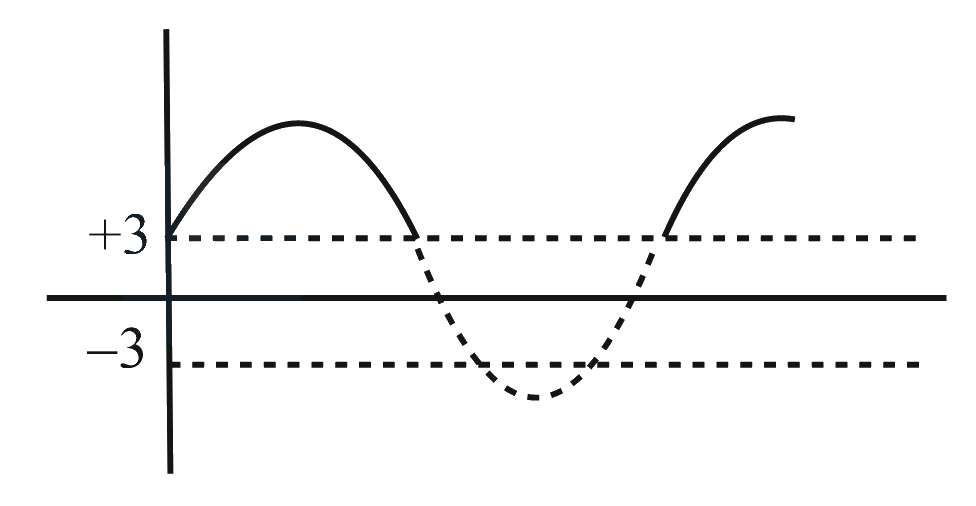

Current will flow from the diode when diode is in forward biased.
Thus ΔV=(10sin⁡ωt−3)V\Delta V=(10\sin \omega t-3)V and ΔV\Delta V will be 'zero', when diode is reverse biased.
