Semiconductors

JEE Main level, single correct, medium

86 of 209

Question 86 of 209

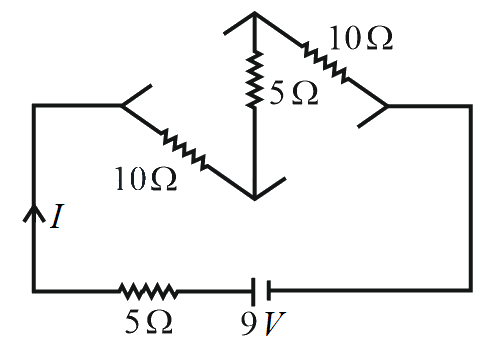

The current $i$ in the network is

Show answer and solution

Answer: (C) $0.3A$

Both the diodes are in reverse biased.

I=\dfrac{9}{30}=\dfrac{3}{10}A=0.3A
