Question 99 of 209

Identify the semiconductor devices whose characteristics are given below, in the order (a),(b),(c),(d)\left(a\right),\left(b\right),\left(c\right),\left(d\right):


Show answer and solution

Answer: (C) Simple diode, Zener diode, Solar cell, Light dependent resistance

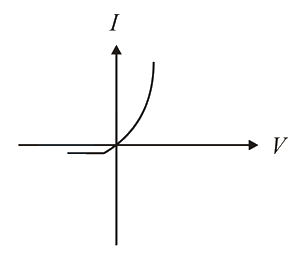

Graph represents V-I characteristics of simple diode.

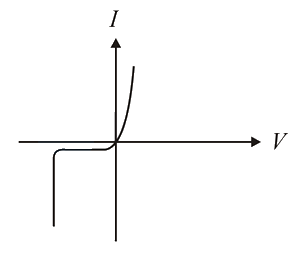

Graph represents V-I characteristic of Zener diode.

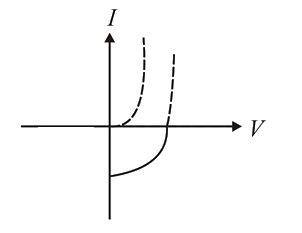

Graph represents V-I characteristics of Solar cell


Graph represents V-I characteristics of light dependence resistance.
