Semiconductors

JEE Main level, single correct, medium

135 of 209

Question 135 of 209

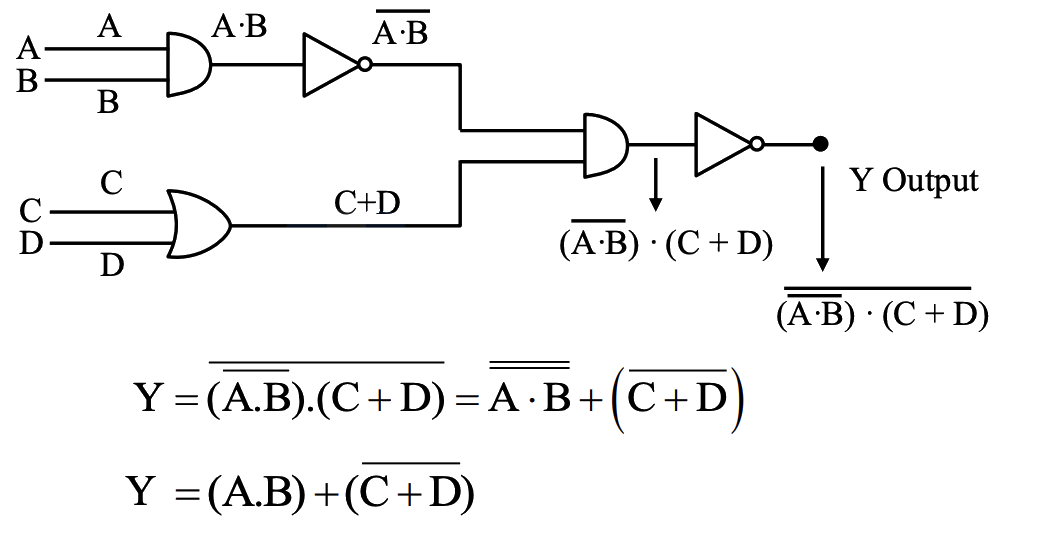

The correct truth table for the given input data of the following logic gate is :
Inputs

Show answer and solution

Answer: (C) \(\begin{array}{|c|c|c|c|c|} \hline A & B & C & D & Y \\ \hline 1 & 1 & 0 & 1 & 1 \\ \hline 0 & 0 & 1 & 1 & 0 \\ \hline 1 & 0 & 1 & 0 & 0 \\ \hline 1 & 1 & 1 & 1 & 1 \\ \hline \end{array}\)
