Question 139 of 209

The Boolean expression $\mathrm{Y}=\mathrm{A} \overline{\mathrm{B}} \mathrm{C}+\overline{\mathrm{A}} \overline{\mathrm{C}}$ can be realised with which of the following gate configurations.

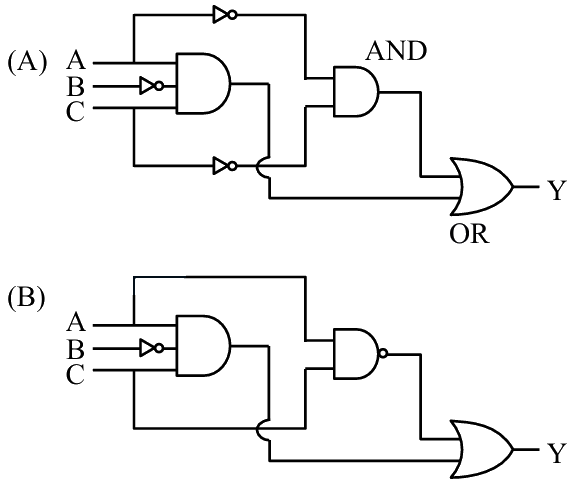

A. One 3-input AND gate, 3 NOT gates and one 2input OR gate, One 2-input AND gate,
B. One 3-input AND gate, 1 NOT gate, One 2input NOR gate and one 2-input OR gate
C. 3-input OR gate, 3 NOT gates and one 2-input AND gate
Choose the correct answer from the options given below

AB, C OnlyBA,B OnlyCA, B, C OnlyDA, C Only

Show answer and solution▾

Answer: (B) A,B Only

$\because \overline{\mathrm{A}} \cdot \overline{\mathrm{C}}+\overline{\mathrm{A}+\mathrm{C}} \equiv \mathrm{NOR}$ gate
