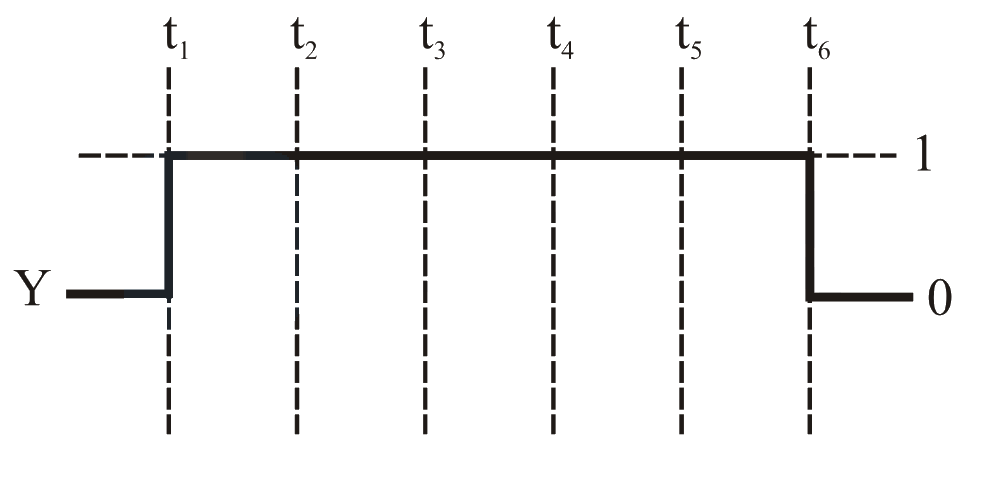

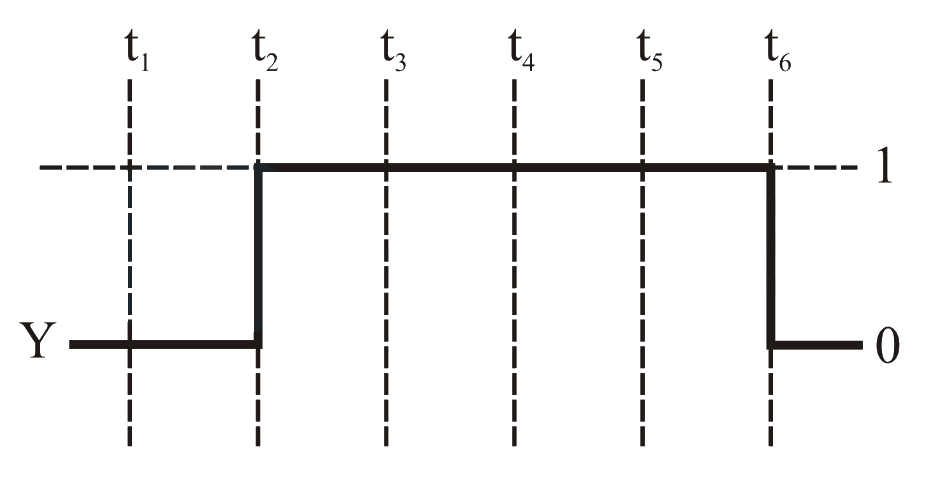

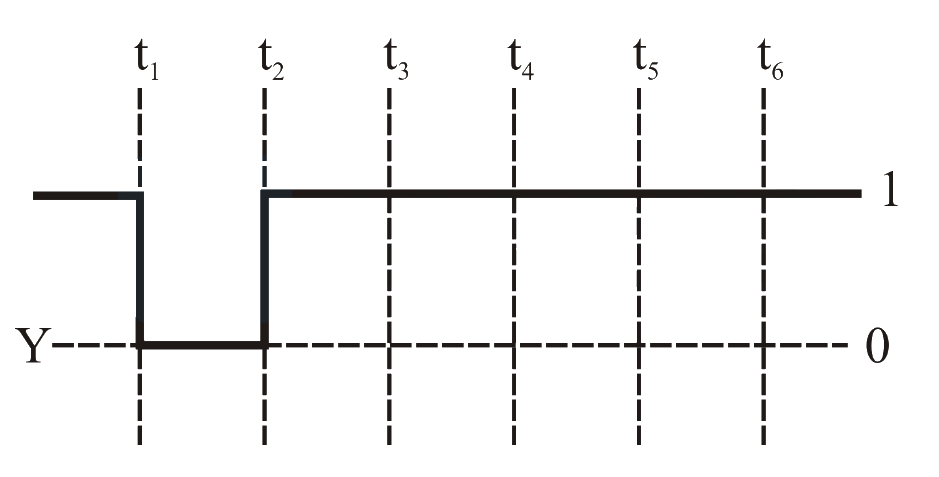

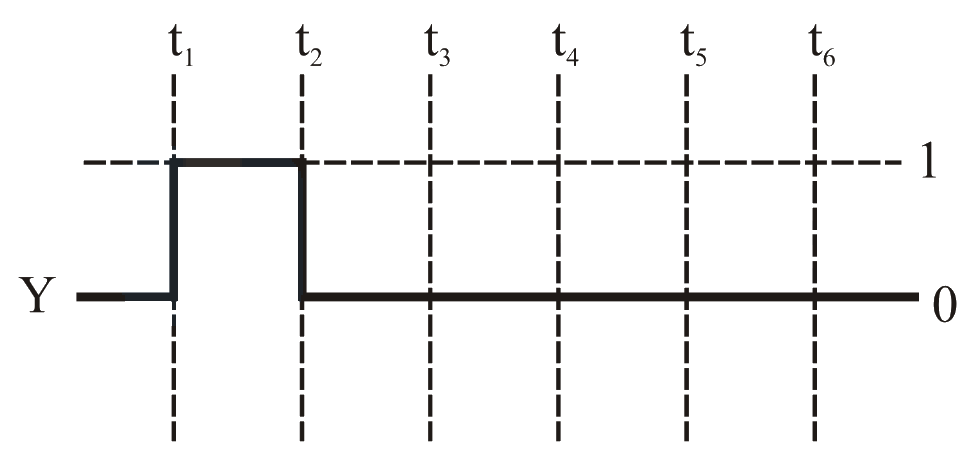

For the following circuit and given inputs AA and B,B, choose the correct option for output ‘Y’‘Y’

Show answer and solution

Answer: (A)

The signal AA is given to a NOR gate and BB is given to an OR gate. The output of these two signals is given to a NAND gate. Using the laws of Boolean algebra,
Y=A⋅Bˉ=A+BˉY=\bar{A\cdot B}=A+\bar{B}.
Analysing from the input graphs, one can see,
t1−t2:A=0,Bˉ=0,Y=0t2−t3:A=1,Bˉ=0,Y=1t3−t4:A=0,Bˉ=1,Y=1t4−t5:A=1,Bˉ=0,Y=1t5−t6:A=1,Bˉ=1,Y=1{t}_{1}-{t}_{2}:A=0,\bar{B}=0,Y=0 {t}_{2}-{t}_{3}:A=1,\bar{B}=0,Y=1 {t}_{3}-{t}_{4}:A=0,\bar{B}=1,Y=1 {t}_{4}-{t}_{5}:A=1,\bar{B}=0,Y=1 {t}_{5}-{t}_{6}:A=1,\bar{B}=1,Y=1
