Question 174 of 209

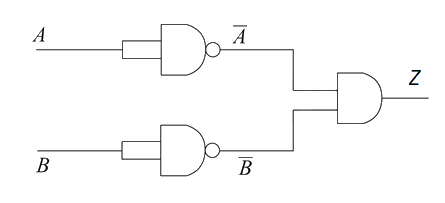

Identify the logic operation carried out by the given circuit:
Show answer and solution
Answer: (D) NOR
In the above circuit diagram of the gate, the result of the above combination is, , using Demorgan's theorem, , so this circuit is equivalent to gate.
