Semiconductors

JEE Main level, numerical answer, medium

180 of 209

Question 180 of 209

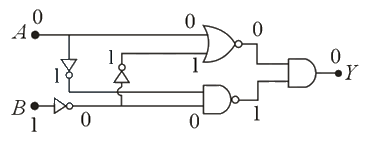

In the logic circuit shown in the figure, if input $A$ and $B$ are $0$ to $1$ respectively, the output at $Y$ would be $x$ . The value of $x$ is _________.

Show answer and solution

Answer: 0
