Question 193 of 209

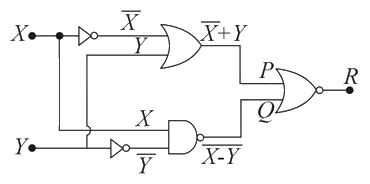

To get output '1' at for the given logic gate circuit the input values must be:
Show answer and solution
Answer: (D)
Semiconductors
JEE Main level, single correct, medium
To get output '1' at for the given logic gate circuit the input values must be:
JEE Main question paper PDF
