Semiconductors

JEE Main level, numerical answer, medium

69 of 209

Question 69 of 209

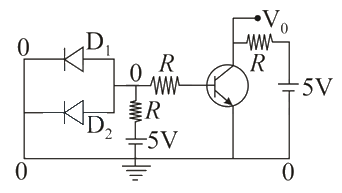

A circuit is arranged as shown in figure. The output voltage Vo{V}_{o} is equal to __________ V.V.

Show answer and solution

Answer: 5


Diodes are forward biased, so they act as wire so input current is 00 as input source is short circuited output current is also zero, as input current is zero
Now, output voltage =5V=5V
